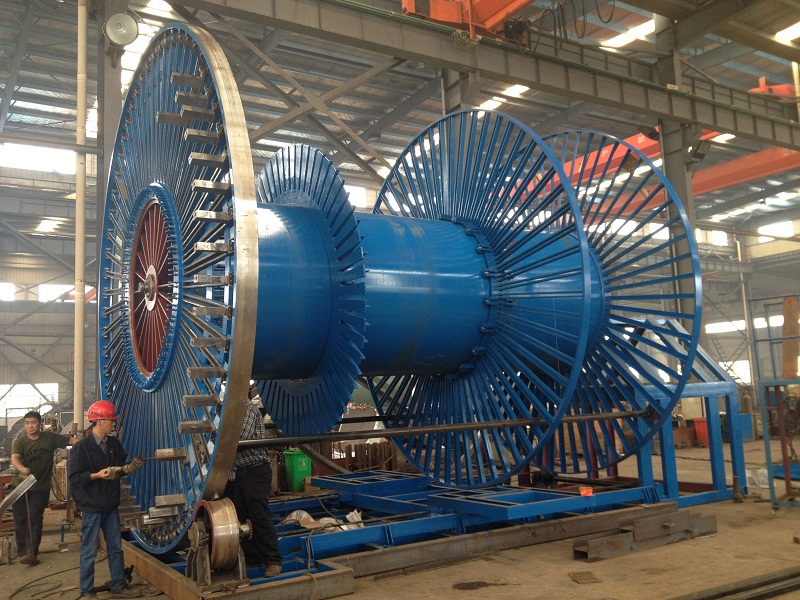

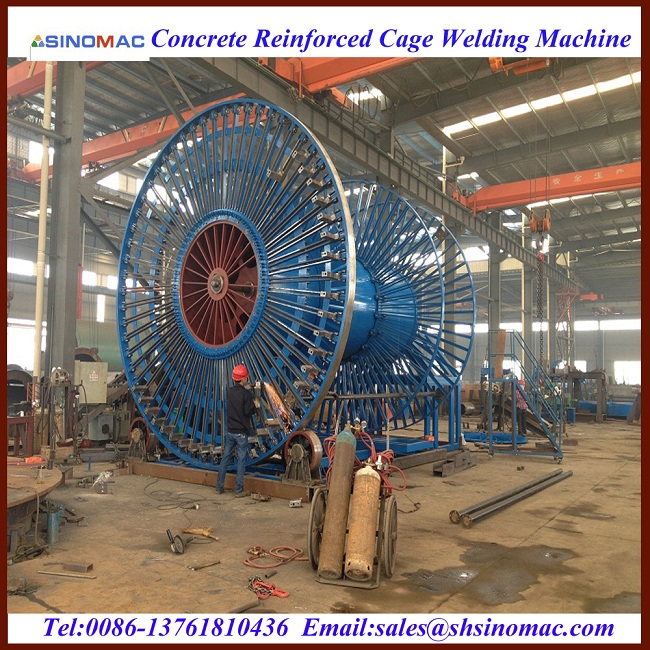

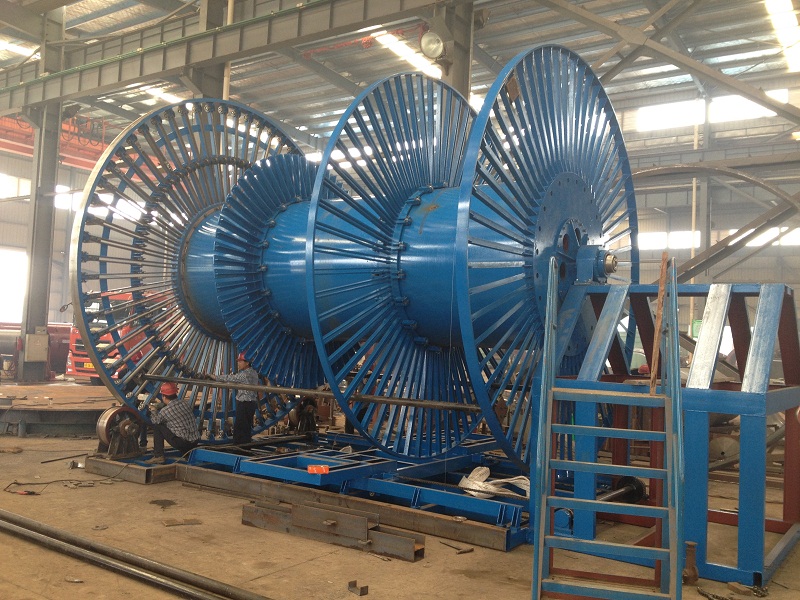

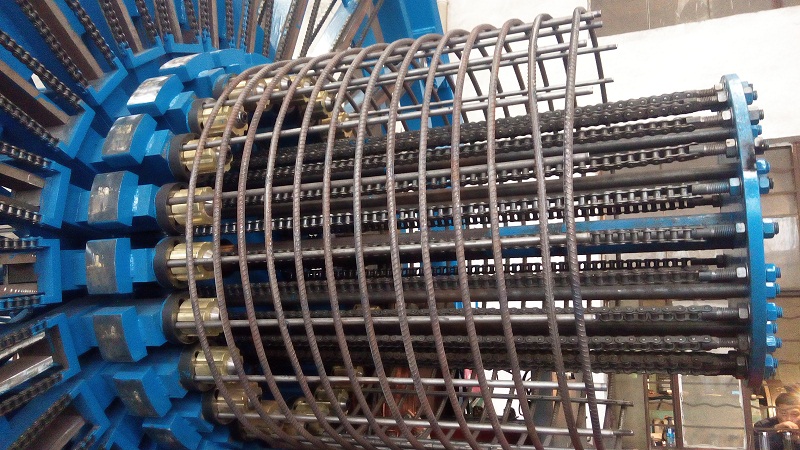

                                                         Reinforced Cage Welding Machine for RCP Pipe

Our factory supply two types of wire cage welding machine :DN400-1200*6000mm and DN1350-3000*6000mm.

1. DN400-1200*600mm Wire Cage Welding  Machine

Specification:

Welding ring reinforcement diameter: φ400-φ750,double ring:φ8  single ring:φ10

Welding ring reinforcement diameter: φ750-φ1200,double ring:φ10  single ring:φ10

Welding Reinforcement Diameter: φ6.35-φ15.875

Reinforcement cage range: φ450-φ1350

Welding longitudinal reinforcement: 6 or 12 pieces

Welding Length: 0-6000mm

Ring reinforce gap distance:40-110mm

Welding transformer: 3*63KVA(3phrase water cooling)

Motor Power: less than 15KW

Efficiency: 1 point/second

Steel Bar should be low carbon cold wire drawing (meet GB/T343-94 Standard). The steel bar should be clean, no oil and rust.

2. DN1350-3000*600mm Wire Cage Welding  Machine

Specification:

Make φ1350-φ3000 flat cage frame

Welding ring reinforcement diameter: φ1350-φ3000,double ring:φ14  single ring:φ14

Welding Reinforcement Diameter: φ6.35-φ14

Reinforcement cage range: φ1350-φ3000

Welding longitudinal reinforcement: 16 or 32 pieces

Welding Length: 0-6000mm

Ring reinforce gap distance:40-110mm

Welding transformer: 3*100KVA(3phrase water cooling)

Motor Power: less than 30KW

Efficiency: 1 point/second

Steel Bar should be low carbon cold wire drawing (meet GB/T343-94 Standard). The steel bar should be clean, no oil and rust.
